Historical Information for Jagdpanther

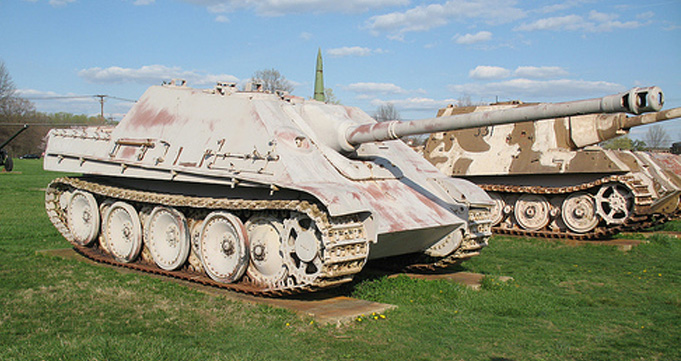

The Jagdpanther ("Hunting Panther") was a tank destroyer built by Nazi Germany during World War II based on the chassis of the Panther tank. Many military historians consider the Jagdpanther to be the best tank destroyer of World War II.

A heavy tank destroyer design based on the 88 mm Pak 43 gun and the Panther tank chassis was ordered in late 1942 as design SdKfz 173. Production started in early 1944; at the same time Hitler specified the Jagdpanther ("hunting panther") name.

To accommodate the heavier-calibre gun, much as on previous Jagdpanzer -style unturreted tank destroyers, the sides of the Panther tank were extended up into an integral, turretless fixed casemate as part of the main hull itself to provide a roomy interior, while maintaining a very low profile. Both the Panther Ausf. G and Jagdpanther had side armor of increased elevation to enhance this effect even further and to harmonize production.

It was armed with an anti-tank version of the same long-barreled 88 mm gun as the Tiger II and a 7.92 mm MG-34 machine gun in the front glacis plate for local defence. The Jagdpanther had a good power-to-weight ratio and a powerful main gun, which enabled it to destroy any type of Allied tank. The Jagdpanther's low profile meant that it was easily camouflaged. Because it was based on the existing Panther chassis, the vehicle did not suffer too many mechanical problems. It was manned by a crew of 5, a driver, radio-operator, commander, gunner, and a loader.

Two variants can be distinguished, one with a welded steel band around the main gun mantlet and the other with a bolted-on band. The versions with the bolted-on ring were equipped with Pak 43/4 gun. Early Jagdpanthers had a monobloc gun barrel and two vision openings for the driver, whereas late versions had only one.
Around 392 Jagdpanthers were produced in 1944 and 1945. They equipped heavy antitank battalions and served mainly on the Eastern Front, although significant numbers were concentrated in the West for the Ardennes Offensive. They were first encountered in the west in very small numbers late in the Battle of Normandy, where the German 654th Heavy Antitank Battalion (schwere Panzerjäger-Abteilung) deployed about 12 Jagdpanthers against British units.


Technical Information



45.5 tinnes (100,309 lbs)


9.87 m (32.38 ft)


3.42 m (11.22 ft)


2.71 m (8.89 ft)




80 mm (3.14 in) frontal
100 mm (3.93 in) mantlet


1x 8.8 cm PaK 43/3 or 43/4 L/71
57 rounds


1x 7.92 mm Maschinengewhr 34
600 rounds


Maybach HL230 P30 (V12 - petrol)
700 PS (690 hp, 515 kW)


15.4 PS/tonne


dual torsion bar


160 km (99.41 mi)


46 km/h (28.58 mph)
